Products

In Starsim, a product represents the actual medical tool that an intervention delivers: a diagnostic test, a treatment, or a vaccine. The split between interventions and products mirrors how real programs work: an intervention decides who gets something and when (eligibility, coverage, timing), while the product defines what happens to an agent when it’s administered.

This separation means you can reuse the same product across different delivery strategies. For example, a single vaccine product can be deployed via a routine immunization program in one scenario and a one-off campaign in another, without redefining the vaccine itself.

For how products are delivered, see the Interventions page; this page focuses on the products themselves.

Product types

All products inherit from ss.Product (itself an ss.Module) and implement an administer() method. Starsim provides three base product types:

Class	Represents	Delivered by
`ss.Dx`	Diagnostics (tests)	`routine_screening`, `campaign_screening`, `routine_triage`, `campaign_triage`
`ss.Tx`	Treatments	`treat_num`
`ss.Vx`	Vaccines	`routine_vx`, `campaign_vx`

Vaccines

The simplest product to use is ss.simple_vx, a built-in vaccine that reduces an agent’s relative susceptibility (rel_sus). It can be “leaky” (everyone who is vaccinated gets partial protection, the default) or “all-or-nothing” (leaky=False, where a fraction of recipients are fully protected and the rest are not protected at all):

import starsim as ss
ss.options(jupyter=True)

# Create a vaccine product with 80% efficacy
vaccine = ss.simple_vx(efficacy=0.8)

# Deliver it through a routine vaccination program
vaccination = ss.routine_vx(product=vaccine, start_year=2010, prob=0.5)

# Run with and without the vaccine
pars = dict(n_agents=5000, start=2000, stop=2020, diseases='sis', networks='random', verbose=0)
s1 = ss.Sim(pars, label='No vaccine')
s2 = ss.Sim(pars, label='With vaccine', interventions=vaccination)

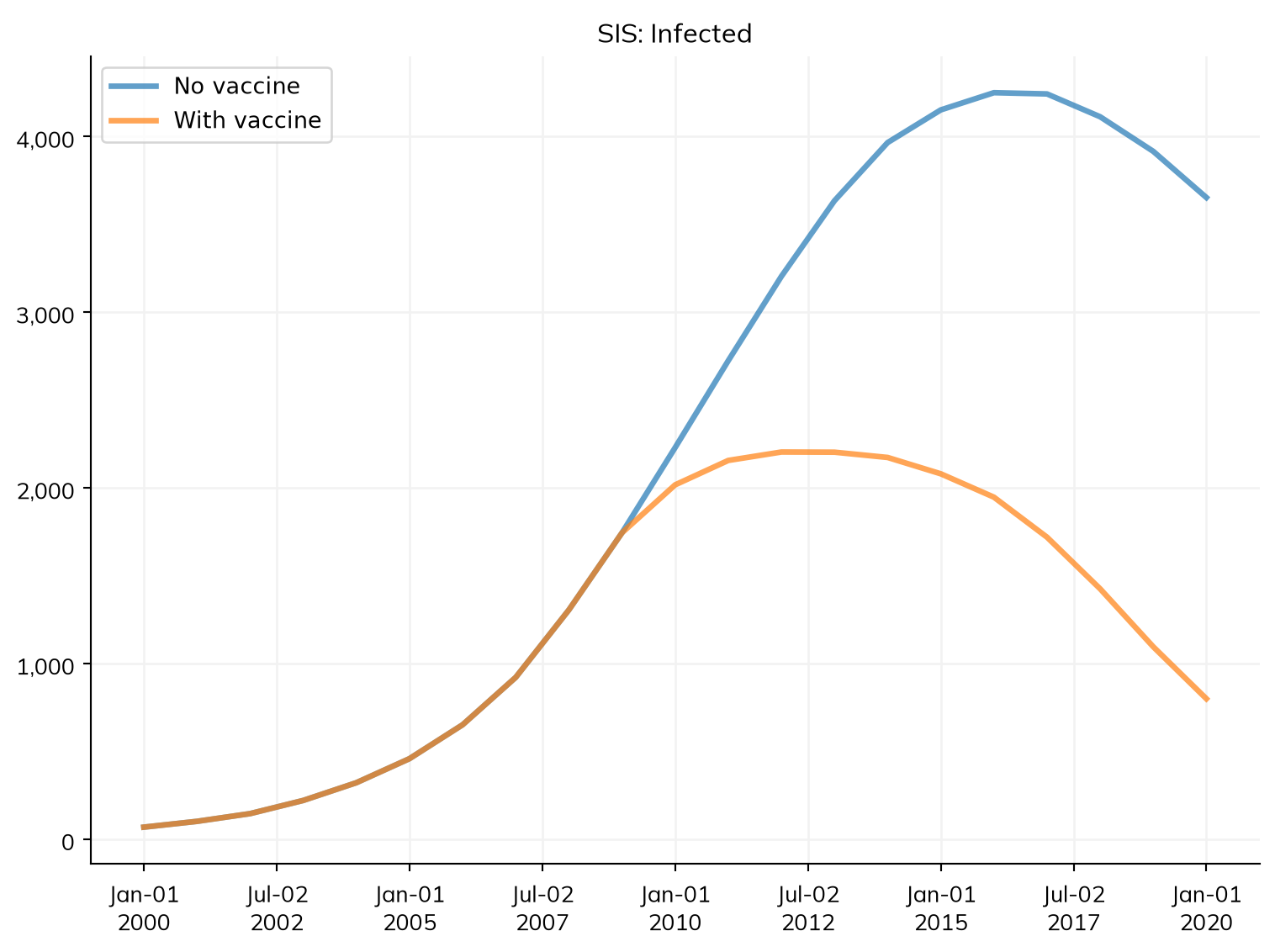

ss.parallel(s1, s2).plot('sis_n_infected')

Figure(768x576)

Diagnostics

A diagnostic product (ss.Dx) is defined by a dataframe giving the probability of each test result, conditional on an agent’s true disease state. The results are returned in priority order (the hierarchy), with the first listed result taking precedence when an agent could match more than one:

import sciris as sc
import starsim as ss

# Probability of each result given the agent's true state
dx_data = sc.dataframe(
    columns = ['disease', 'state',       'result',   'probability'],
    data = [
        ['sis',   'susceptible', 'positive', 0.01],  # False positive rate
        ['sis',   'susceptible', 'negative', 0.99],
        ['sis',   'infected',    'positive', 0.95],  # Sensitivity
        ['sis',   'infected',    'negative', 0.05],
    ]
)

# Create the diagnostic product and deliver it via screening
test = ss.Dx(df=dx_data)
screening = ss.routine_screening(product=test, prob=0.5, start_year=2010)

sim = ss.Sim(n_agents=5000, start=2000, stop=2020, diseases='sis', networks='random',
             interventions=screening, verbose=0)
sim.run()

# The screening intervention records who tested positive/negative each step
print('Tested positive on final step:', len(sim.interventions.routine_screening.outcomes['positive']))

Tested positive on final step: 1631

Screening is often paired with treatment: agents who test positive become eligible for a treatment intervention (this is the “triage” pattern; see the Interventions page).

Treatments

A treatment product (ss.Tx) moves agents from one disease state to another with a given efficacy. It’s defined by a dataframe with disease, state, post_state, and efficacy columns. Here we clear infection in an SIS model, returning treated agents to susceptible:

import sciris as sc
import starsim as ss

# Treatment clears infection with 80% efficacy
tx_data = sc.dataframe(
    columns = ['disease', 'state',    'post_state',  'efficacy'],
    data = [['sis',   'infected', 'susceptible', 0.8]],
)
treatment = ss.treat_num(
    product = ss.Tx(df=tx_data),
    eligibility = lambda sim: sim.diseases.sis.infected.uids,
    max_capacity = 50,  # Treat at most 50 agents per timestep
)

pars = dict(n_agents=5000, diseases='sis', networks='random', verbose=0)
s1 = ss.Sim(pars, label='No treatment')
s2 = ss.Sim(pars, label='With treatment', interventions=treatment)

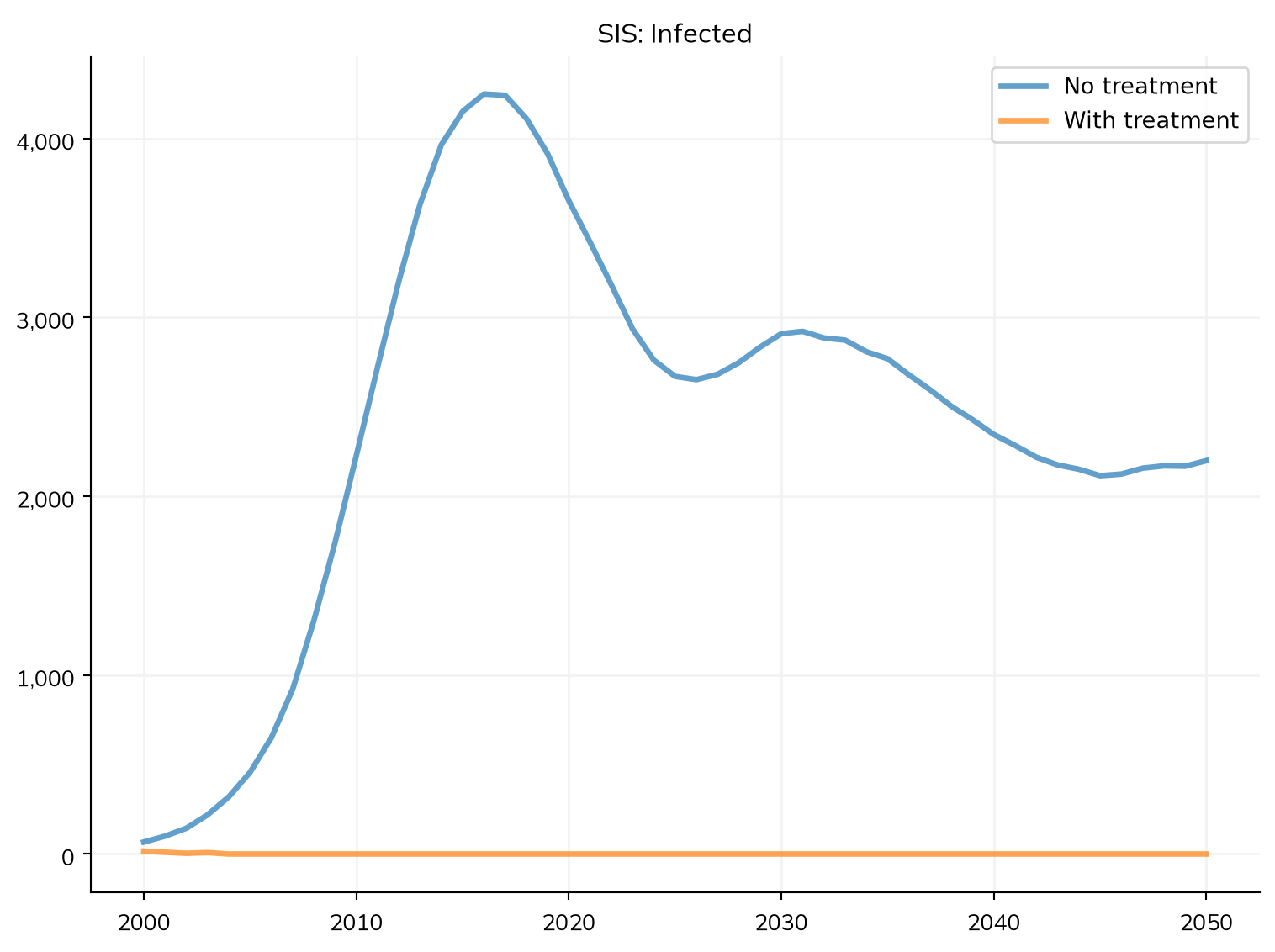

ss.parallel(s1, s2).plot('sis_n_infected')

Figure(768x576)

The max_capacity argument caps how many agents can be treated per timestep, which is useful for modelling resource-constrained programs.

Writing a custom product

If the built-in products don’t do what you need, you can write your own by subclassing ss.Vx, ss.Dx, ss.Tx, or ss.Product directly and implementing administer(). Vaccine products receive (people, uids); diagnostics and treatments receive (uids) and return their outcomes.

The example below is a vaccine whose efficacy is higher for younger agents:

import starsim as ss
import numpy as np

class AgeTargetedVx(ss.Vx):
    """ A vaccine that is more effective in younger agents """
    def __init__(self, efficacy=0.9, **kwargs):
        super().__init__()
        self.define_pars(efficacy=efficacy)
        self.update_pars(**kwargs)
        return

    def administer(self, people, uids):
        # Efficacy declines linearly with age, to a floor of 0
        age_factor = np.clip(1 - people.age[uids]/80, 0, 1)
        protection = 1 - self.pars.efficacy*age_factor
        for disease in self.sim.diseases.values():
            disease.rel_sus[uids] *= protection
        return

vaccination = ss.routine_vx(product=AgeTargetedVx(efficacy=0.9), start_year=2010, prob=0.5)
sim = ss.Sim(n_agents=5000, start=2000, stop=2020, diseases='sis', networks='random',
             interventions=vaccination, verbose=0)
sim.run()

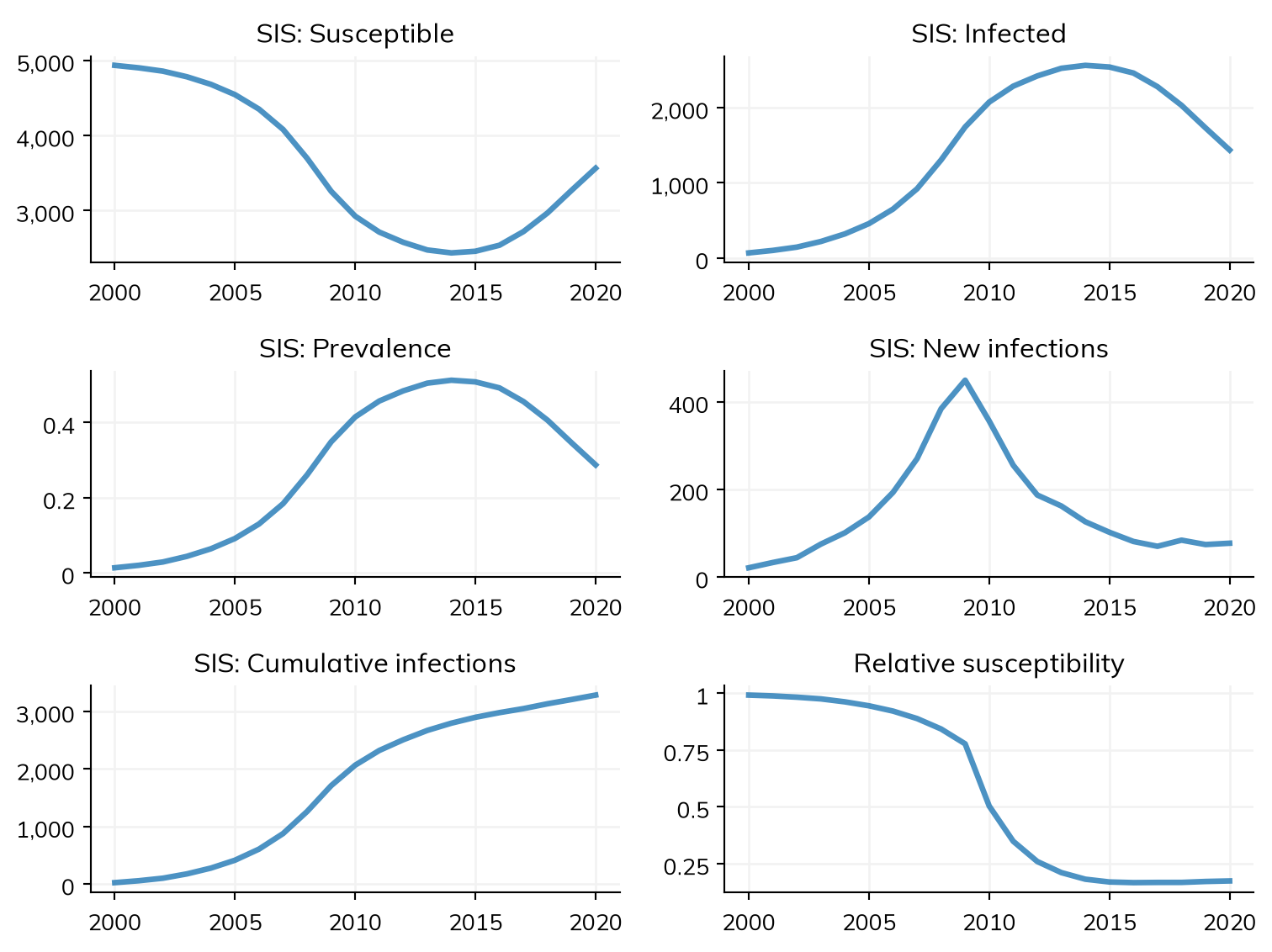

sim.plot('sis')

Figure(768x576)

Tip

Because products are modules, they can define their own parameters (with define_pars()), states, and results, just like any other Starsim module. See Adding new modules for the general pattern.
