Multiple runs

Let’s be honest, there isn’t much you can do with a single sim run. So 99.9% of the time, you’ll be wanting to run multiple simulations and compare them.

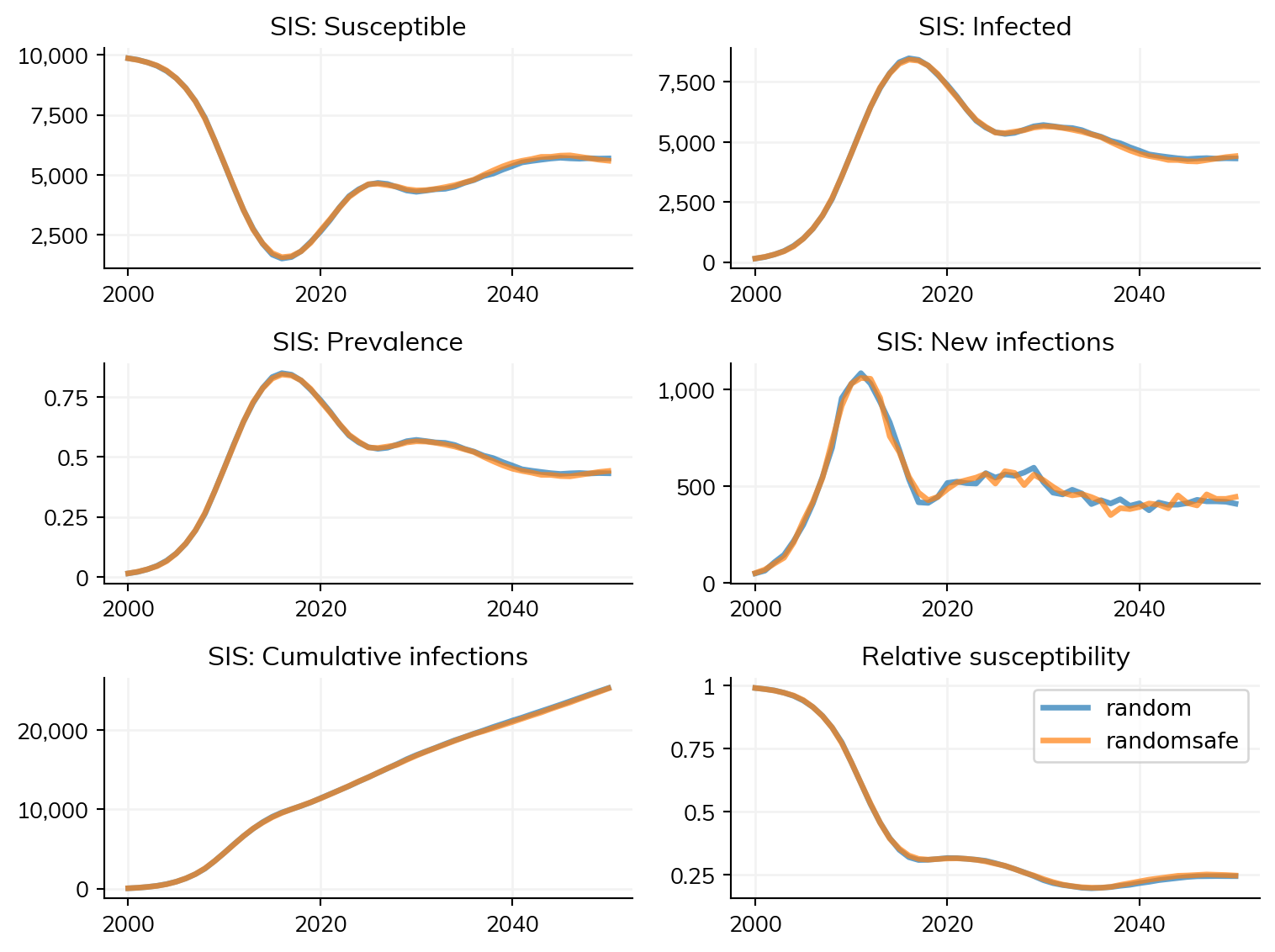

The easiest way to do this is with ss.parallel(), which, as the name suggests, runs the sim in parallel on your computer using all available cores. Let’s say we want to see what difference swapping the network makes:

import starsim as ss
ss.options(jupyter=True) # Improve plot resolution

sim1 = ss.Sim(label='random', diseases='sis', networks='random')
sim2 = ss.Sim(label='randomsafe', diseases='sis', networks='randomsafe')
msim = ss.parallel(sim1, sim2)
msim.plot()

Initializing sim "randomsafe" with 10000 agents
Initializing sim "random" with 10000 agents
  Running "randomsafe": 2000.01.01 ( 0/51) (0.00 s)  ———————————————————— 2%
  Running "random": 2000.01.01 ( 0/51) (0.00 s)  ———————————————————— 2%
  Running "random": 2010.01.01 (10/51) (0.16 s)  ••••———————————————— 22%
  Running "randomsafe": 2010.01.01 (10/51) (0.18 s)  ••••———————————————— 22%
  Running "random": 2020.01.01 (20/51) (0.20 s)  ••••••••———————————— 41%
  Running "random": 2030.01.01 (30/51) (0.23 s)  ••••••••••••———————— 61%
  Running "randomsafe": 2020.01.01 (20/51) (0.24 s)  ••••••••———————————— 41%
  Running "random": 2040.01.01 (40/51) (0.27 s)  ••••••••••••••••———— 80%
  Running "randomsafe": 2030.01.01 (30/51) (0.30 s)  ••••••••••••———————— 61%
  Running "random": 2050.01.01 (50/51) (0.30 s)  •••••••••••••••••••• 100%

  Running "randomsafe": 2040.01.01 (40/51) (0.35 s)  ••••••••••••••••———— 80%
  Running "randomsafe": 2050.01.01 (50/51) (0.41 s)  •••••••••••••••••••• 100%

Figure(768x576)

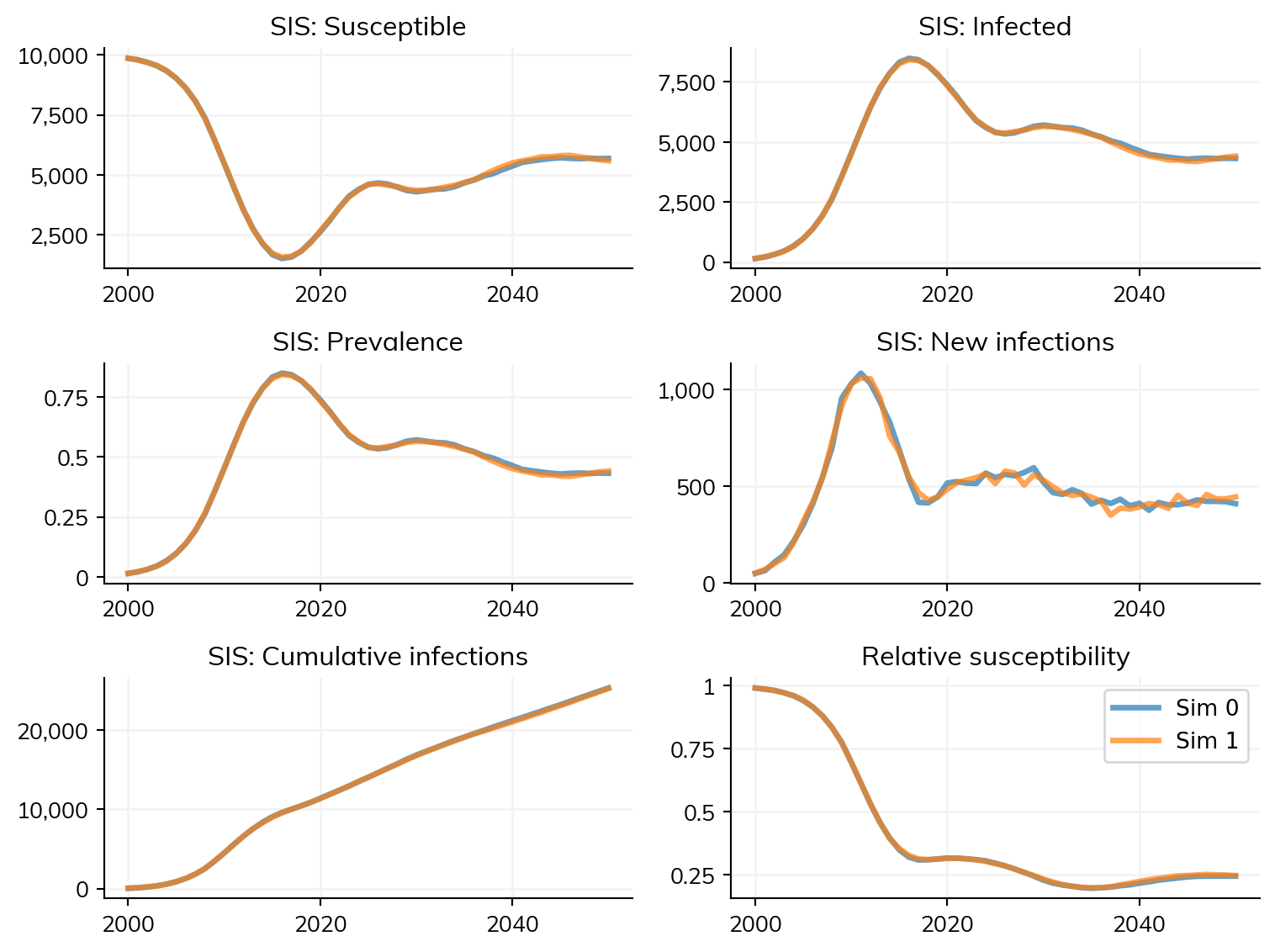

ss.parallel() is just a wrapper for ss.MultiSim().run() (and note how we can pass arguments to all of the sims, e.g. verbose=0 here):

sim1 = ss.Sim(diseases='sis', networks='random')
sim2 = ss.Sim(diseases='sis', networks='randomsafe')
msim = ss.MultiSim(sims=[sim1, sim2]).run(verbose=0)
msim.plot()

Initializing sim "Sim 0" with 10000 agentsInitializing sim "Sim 1" with 10000 agents

Figure(768x576)

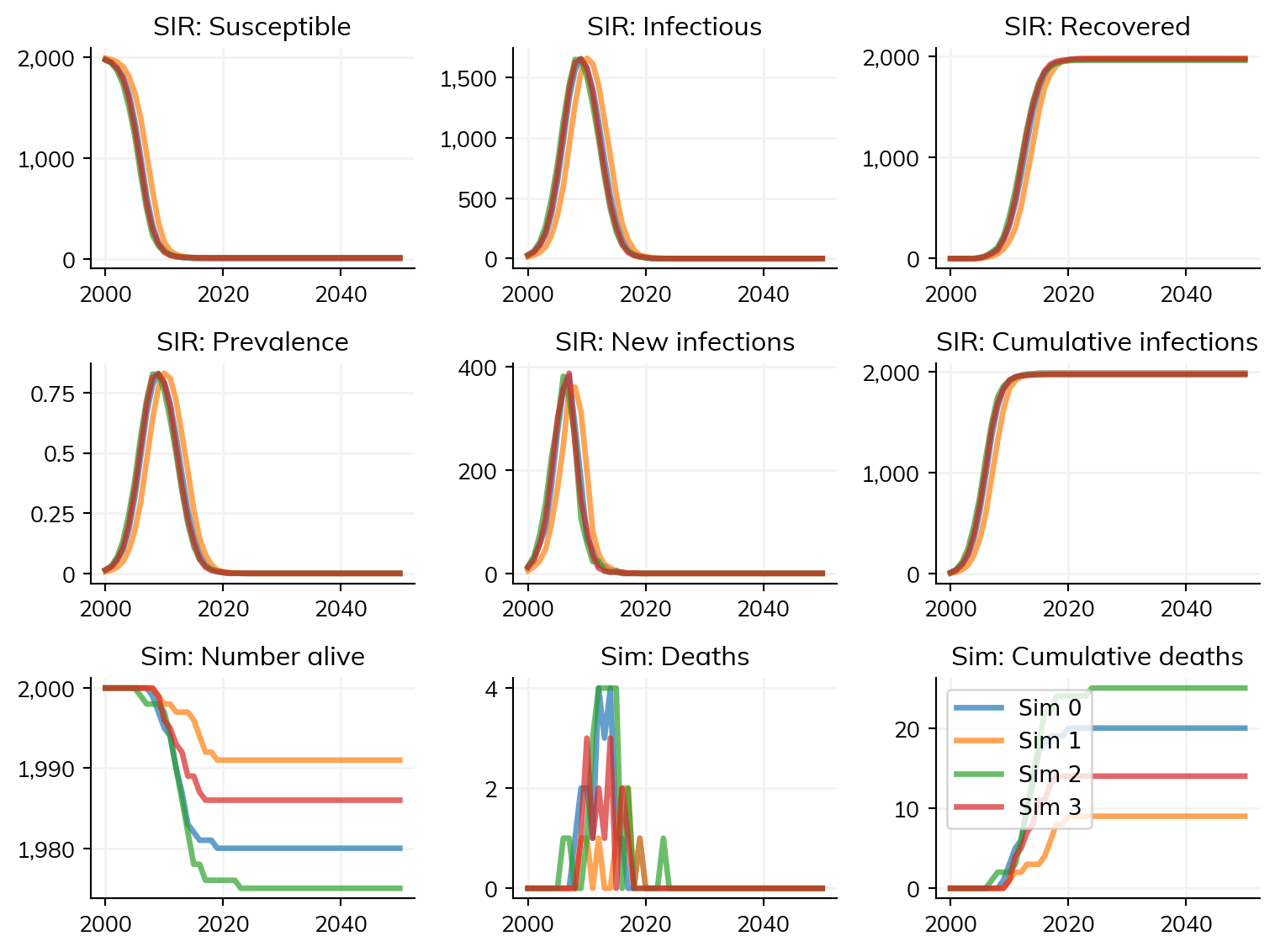

In most cases, this is the most efficient workflow: make some sims (potentially via a loop), and then run them. But there are some other common workflows as well. One is to run the same simulation with different random seeds. This is what happens by default if you call ss.MultiSim() with a single sim:

sim = ss.Sim(n_agents=2000, diseases='sir', networks='random', verbose=0)
msim = ss.MultiSim(sim).run()
msim.plot()

Figure(768x576)

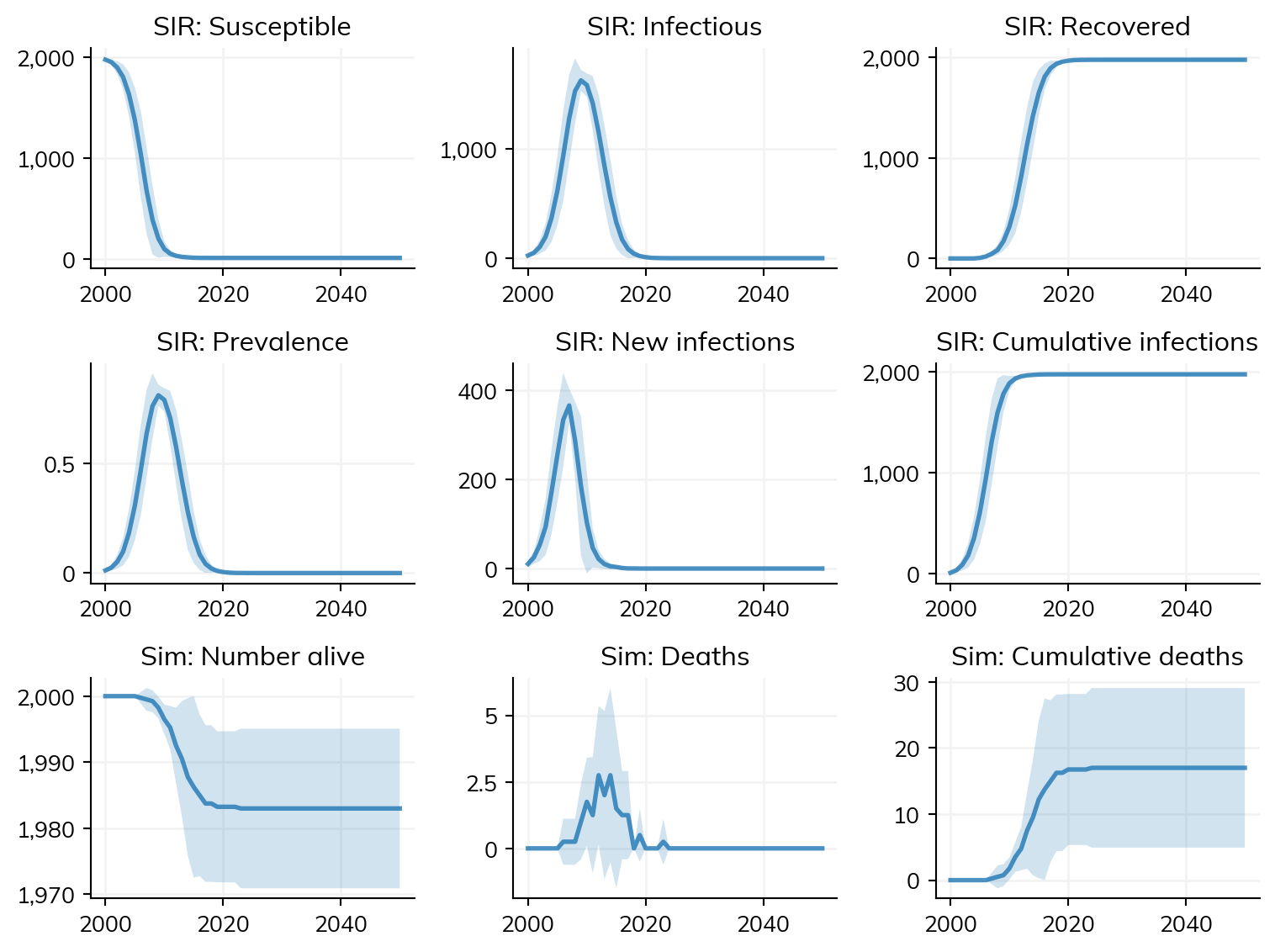

In addition to plotting the individual sims, we can quickly compute stats on the sim by calling msim.mean() or msim.median() (or more generally, msim.reduce() if we want to specify e.g. quantiles):

msim.mean()
msim.plot()

Figure(768x576)

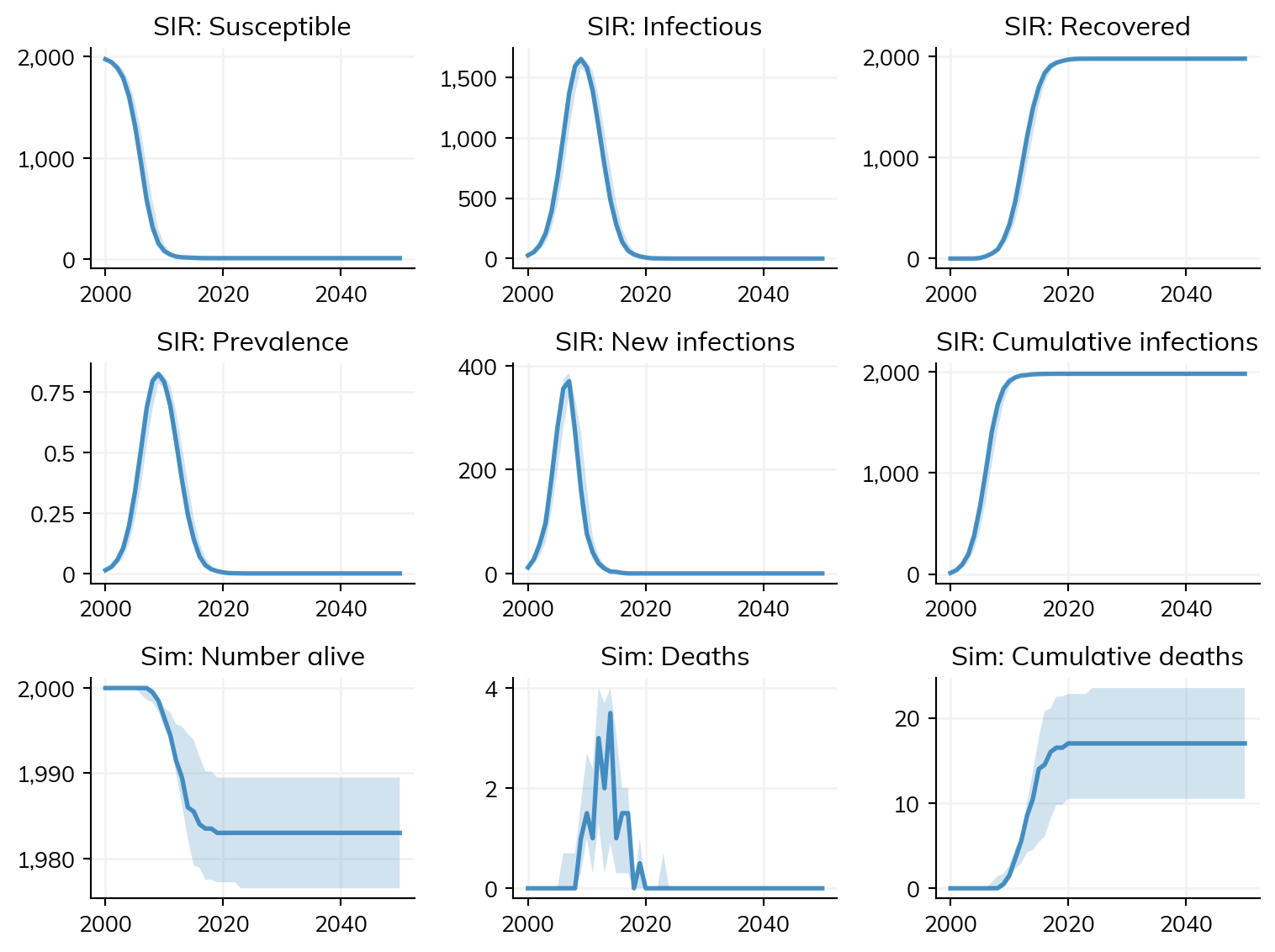

This looks a little wonky because the error bounds shown are ±2 standard deviations, but we know things like deaths can’t go negative. In cases like this, we get more reasonable results with median(), which by default shows the 10th and 90th quantiles:

msim.median()
msim.plot()

Figure(768x576)

Copies

Both ss.Sim and ss.MultiSim objects let you control whether or not the objects passed into them are copied. By default, sims do copy inputs and multisims don’t. Let’s look at a few examples.

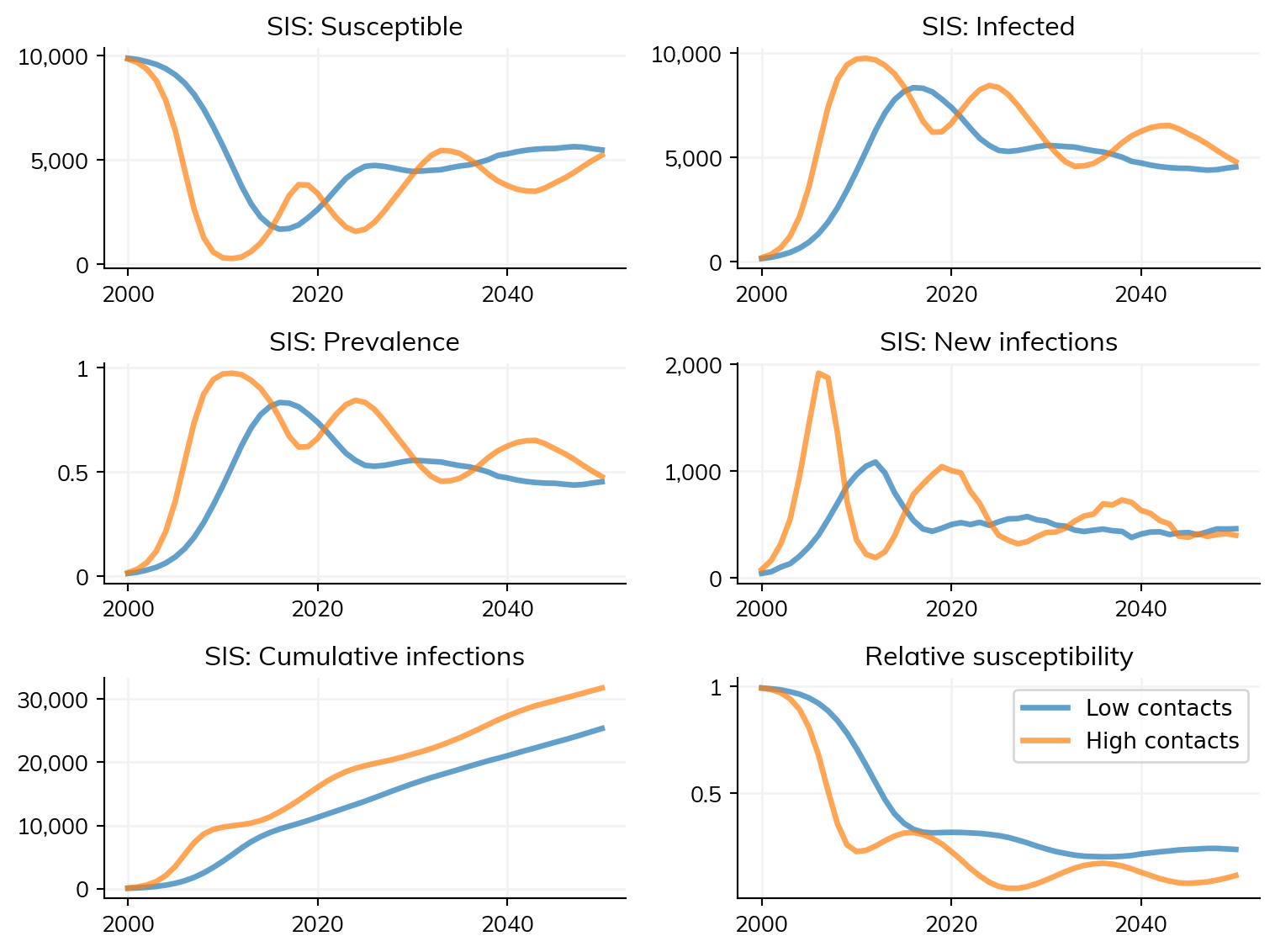

Sims copy inputs by default because it’s common to want to reuse a module between sims, which wouldn’t be allowed if it wasn’t copied (since it’s modified in place during run). For example:

sis = ss.SIS(beta=0.1)

s1 = ss.Sim(label='Low contacts', diseases=sis, networks=ss.RandomNet(n_contacts=5))
s2 = ss.Sim(label='High contacts', diseases=sis, networks=ss.RandomNet(n_contacts=10))
ss.parallel(s1, s2).plot()

Initializing sim "High contacts" with 10000 agentsInitializing sim "Low contacts" with 10000 agents

  Running "Low contacts": 2000.01.01 ( 0/51) (0.00 s)  ———————————————————— 2%  Running "High contacts": 2000.01.01 ( 0/51) (0.00 s)  ———————————————————— 2%

  Running "Low contacts": 2010.01.01 (10/51) (0.15 s)  ••••———————————————— 22%
  Running "High contacts": 2010.01.01 (10/51) (0.16 s)  ••••———————————————— 22%
  Running "Low contacts": 2020.01.01 (20/51) (0.18 s)  ••••••••———————————— 41%
  Running "High contacts": 2020.01.01 (20/51) (0.20 s)  ••••••••———————————— 41%
  Running "Low contacts": 2030.01.01 (30/51) (0.21 s)  ••••••••••••———————— 61%
  Running "High contacts": 2030.01.01 (30/51) (0.24 s)  ••••••••••••———————— 61%
  Running "Low contacts": 2040.01.01 (40/51) (0.24 s)  ••••••••••••••••———— 80%
  Running "Low contacts": 2050.01.01 (50/51) (0.27 s)  •••••••••••••••••••• 100%

  Running "High contacts": 2040.01.01 (40/51) (0.27 s)  ••••••••••••••••———— 80%
  Running "High contacts": 2050.01.01 (50/51) (0.31 s)  •••••••••••••••••••• 100%

Figure(768x576)

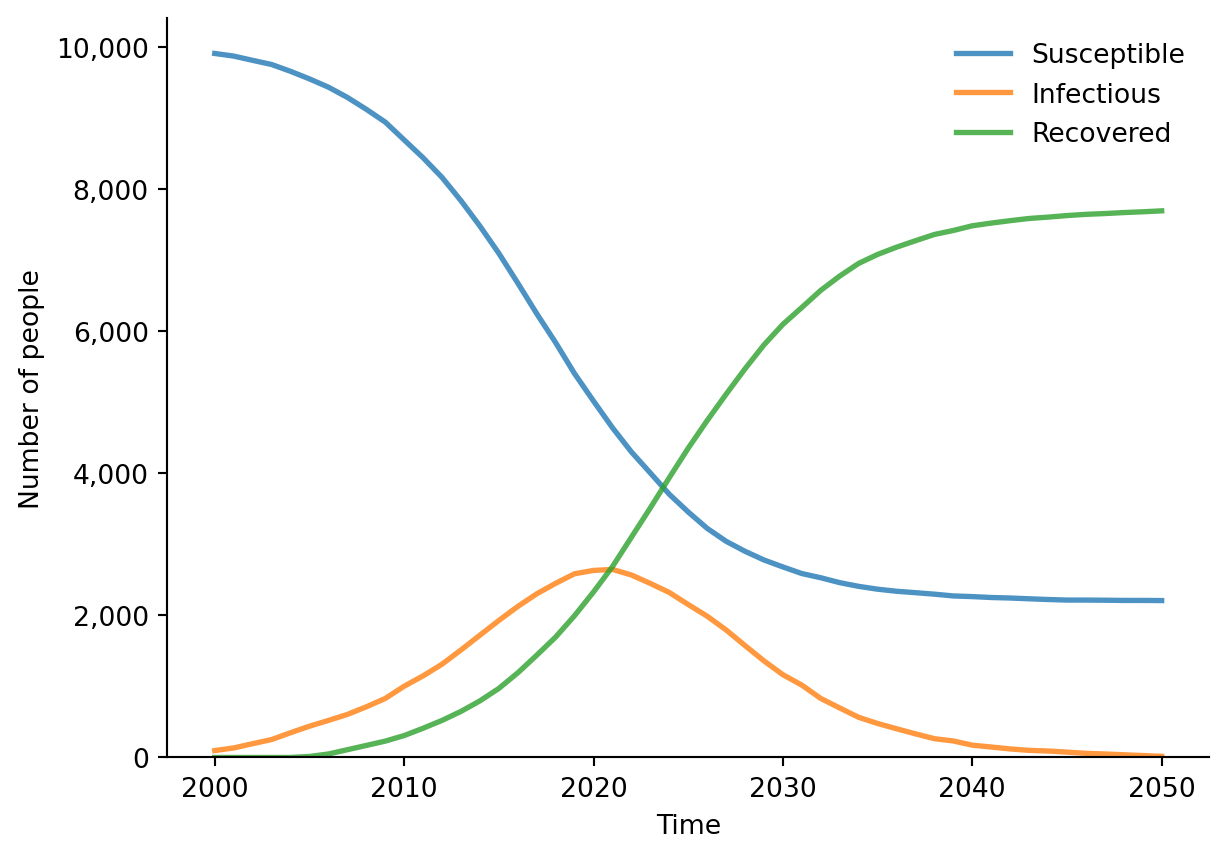

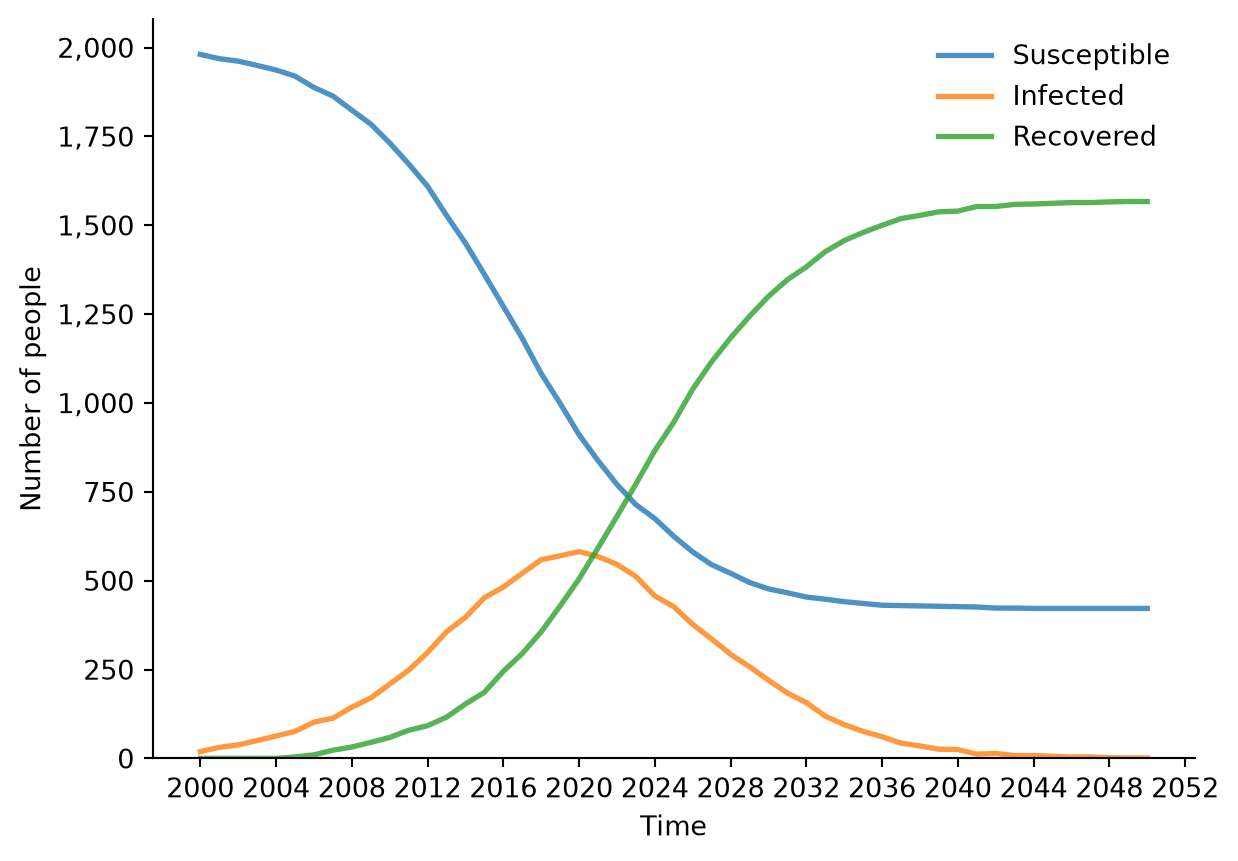

But this can be confusing, because it means the sis in the simulation is a different object than the sis you created. If you want to keep it the same, set copy_inputs=False, for example, to use it directly afterwards:

sir = ss.SIR(beta=0.035)
sim = ss.Sim(diseases=sir, networks='random', copy_inputs=False)
sim.run()
sir.plot() # This wouldn't work without copy_inputs=False

Initializing sim with 10000 agents
  Running 2000.01.01 ( 0/51) (0.00 s)  ———————————————————— 2%
  Running 2010.01.01 (10/51) (0.15 s)  ••••———————————————— 22%
  Running 2020.01.01 (20/51) (0.18 s)  ••••••••———————————— 41%
  Running 2030.01.01 (30/51) (0.22 s)  ••••••••••••———————— 61%
  Running 2040.01.01 (40/51) (0.26 s)  ••••••••••••••••———— 80%
  Running 2050.01.01 (50/51) (0.29 s)  •••••••••••••••••••• 100%

Figure(672x480)

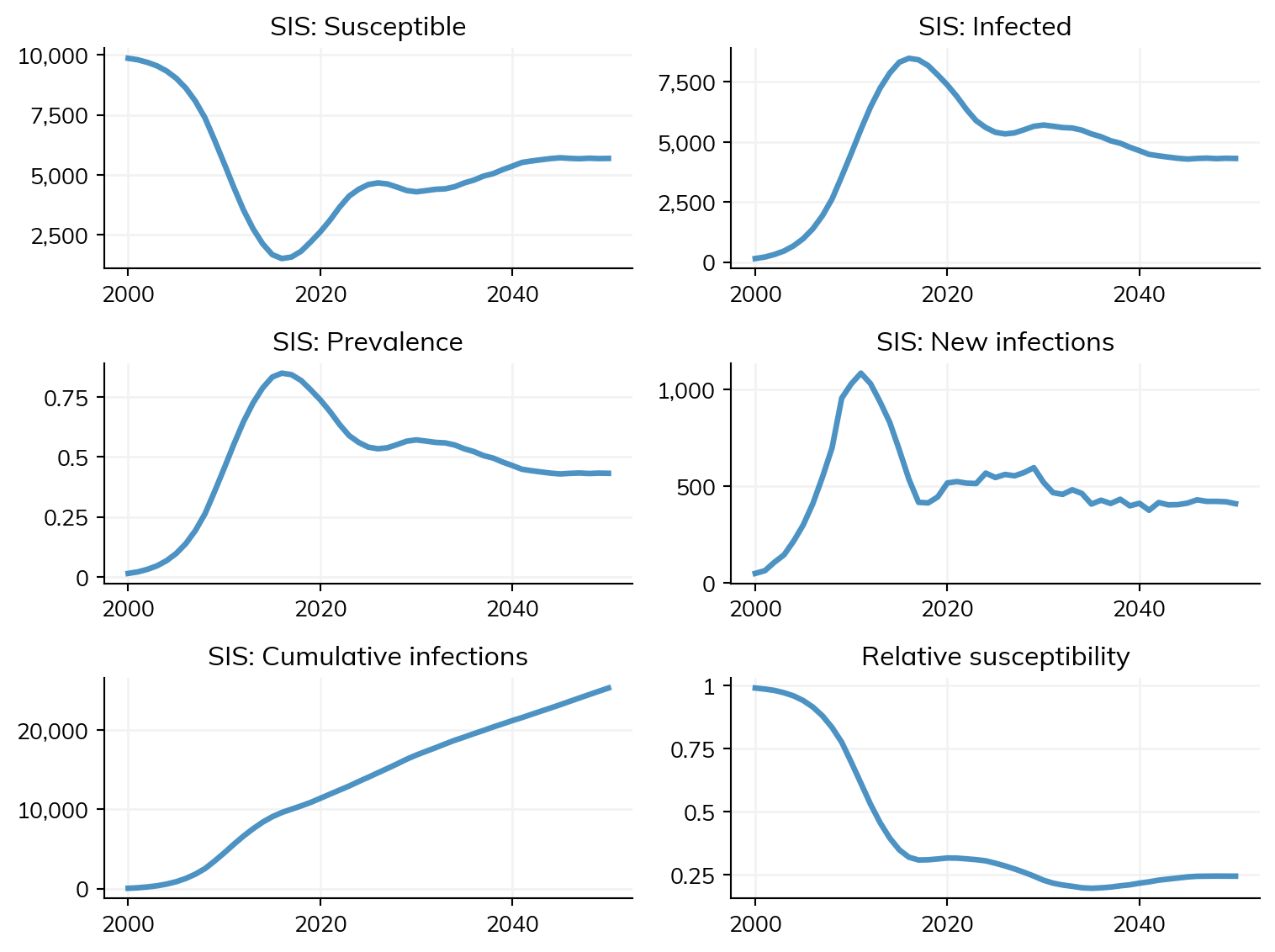

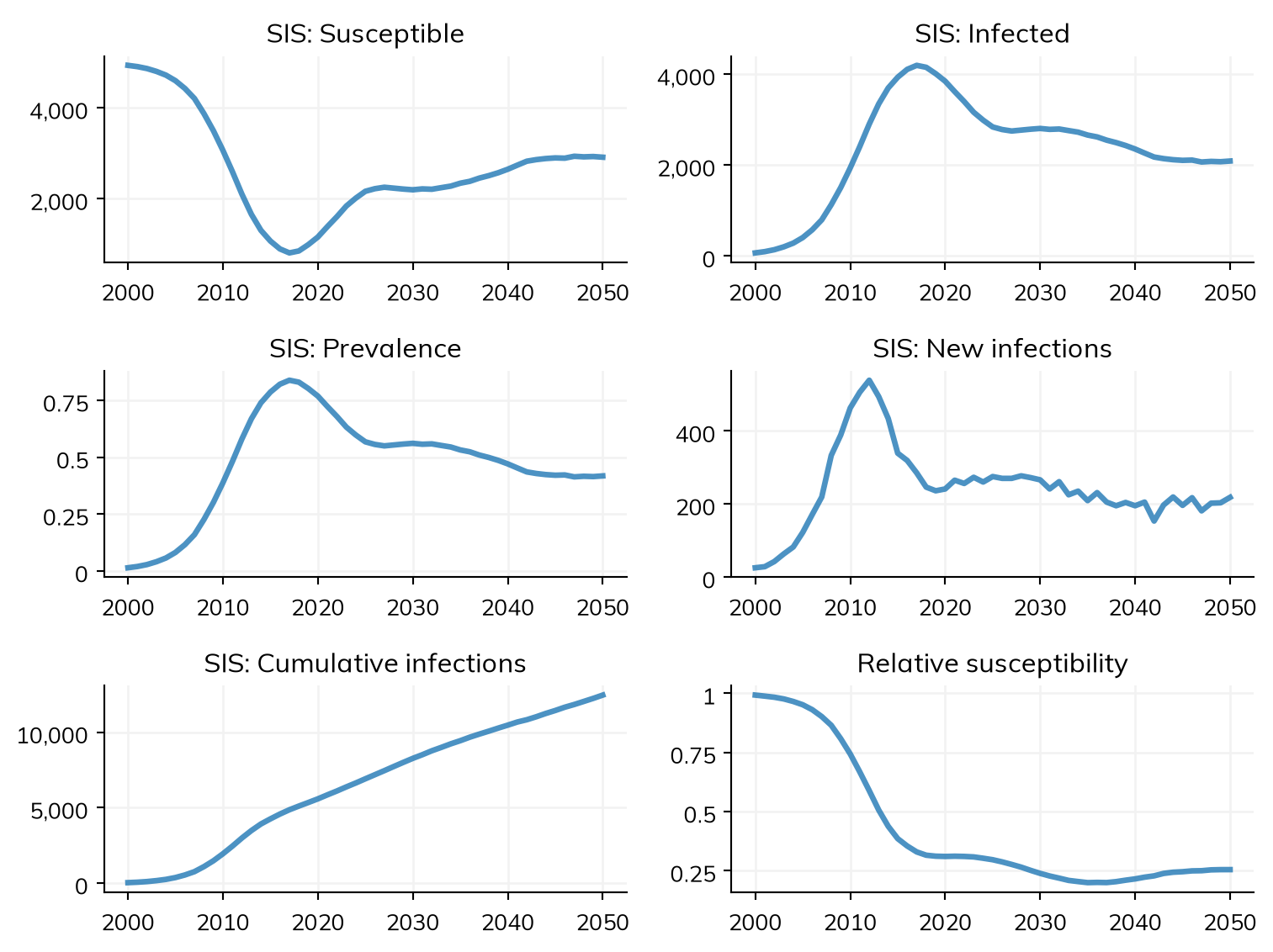

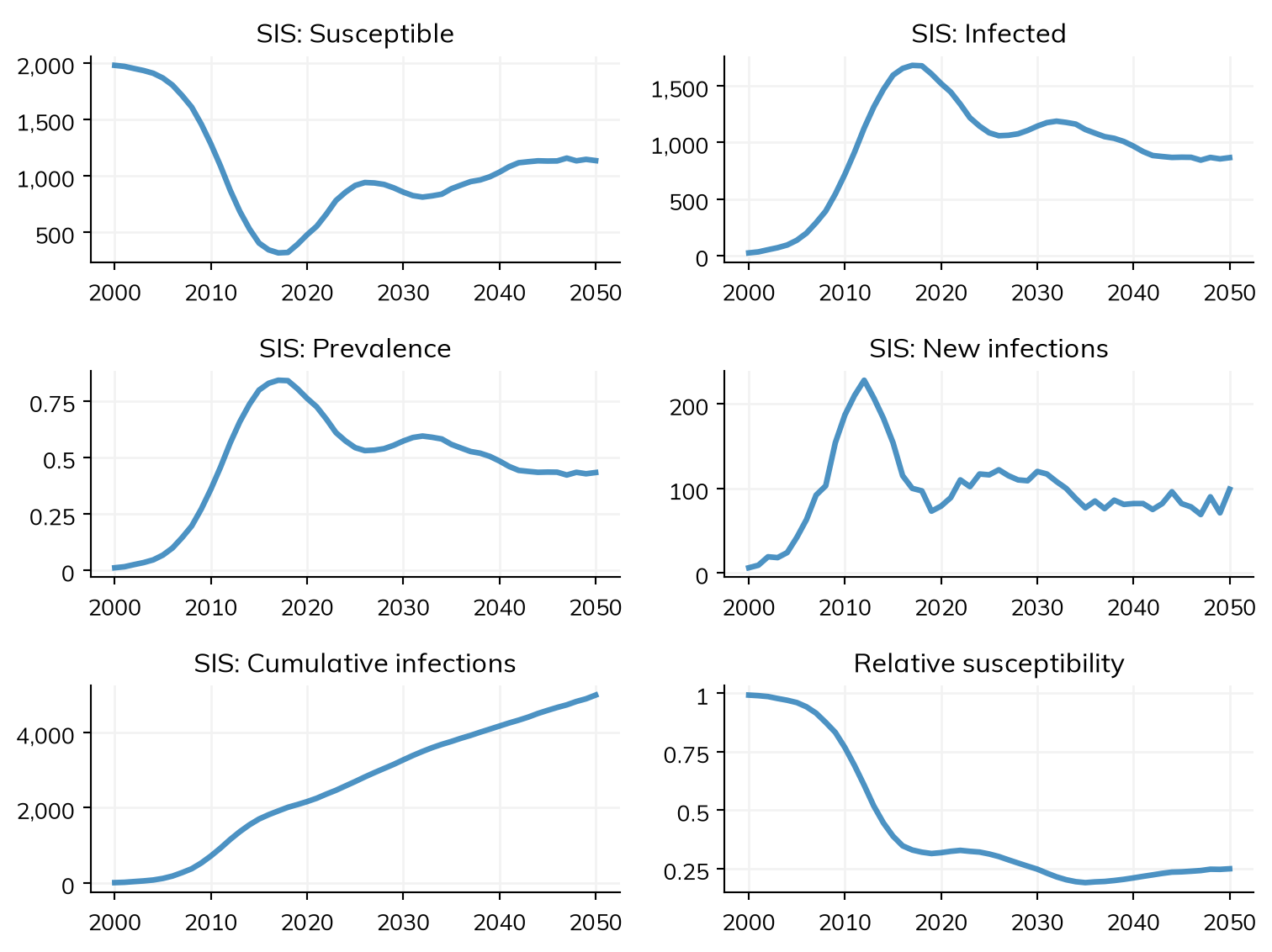

Conversely, ss.MultiSim() by default does not copy the input sims, so they are modified in place:

s1 = ss.Sim(diseases='sis', networks='random')
s2 = ss.Sim(diseases='sir', networks='random')
ss.parallel(s1, s2, verbose=0)

s1.plot() # This also works, because it was run in place

Initializing sim "Sim 0" with 10000 agentsInitializing sim "Sim 1" with 10000 agents

Figure(768x576)

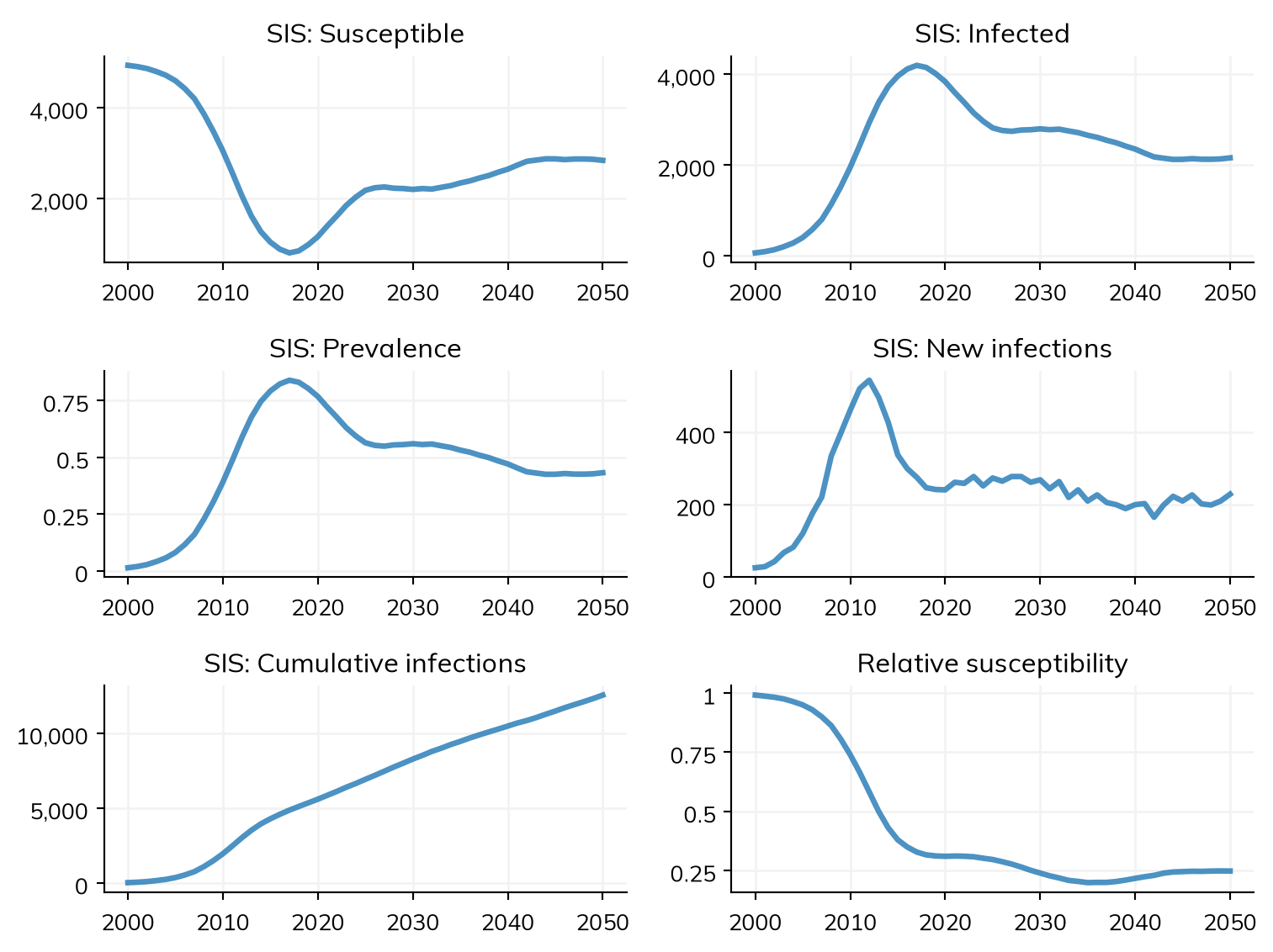

If you want to copy the sims before run, then set inplace=False:

s1 = ss.Sim(diseases='sis', networks='random')
s2 = ss.Sim(diseases='sir', networks='random')
ss.parallel(s1, s2, verbose=0, inplace=False)

s1.run().plot() # This now works, because the sim was *not* run in place

Initializing sim "Sim 1" with 10000 agents
Initializing sim "Sim 0" with 10000 agents
Initializing sim with 10000 agents
  Running 2000.01.01 ( 0/51) (0.00 s)  ———————————————————— 2%
  Running 2010.01.01 (10/51) (0.04 s)  ••••———————————————— 22%
  Running 2020.01.01 (20/51) (0.08 s)  ••••••••———————————— 41%
  Running 2030.01.01 (30/51) (0.11 s)  ••••••••••••———————— 61%
  Running 2040.01.01 (40/51) (0.14 s)  ••••••••••••••••———— 80%
  Running 2050.01.01 (50/51) (0.17 s)  •••••••••••••••••••• 100%

Figure(768x576)

Advanced workflows

A common pattern for more complex workflows is to write make_sim(). The example below, based on an STIsim application, shows how complex a make_sim() function can get (this is, after all, where most of the science happens!):

def make_sim(seed=1, n_agents=None, start=1990, stop=2030, debug=False, add_stis=True, scenario='treat'):

    total_pop = {1970: 5.203e6, 1980: 7.05e6, 1985: 8.691e6, 1990: 9980999, 2000: 11.83e6}[start]
    if n_agents is None: n_agents = [int(10e3), int(5e2)][debug]
    if dt is None: dt = [1/12, 1][debug]

    # Demographic modules
    fertility_data = pd.read_csv(f'data/asfr.csv')
    pregnancy = ss.Pregnancy(dt='month', fertility_rate=fertility_data)
    death_data = pd.read_csv(f'data/deaths.csv')
    death = ss.Deaths(death_rate=death_data, rate_units=1)

    # People and networks
    ppl = ss.People(n_agents, age_data=pd.read_csv(f'data/age_dist_{start}.csv', index_col='age')['value'])
    sexual = sti.FastStructuredSexual(
        prop_f0=0.79,
        prop_m0=0.83,
        f1_conc=0.16,
        m1_conc=0.11,
        p_pair_form=0.58,
        condom_data=pd.read_csv(f'data/condom_use.csv'),
    )
    maternal = ss.MaternalNet(dt='month')

    # Diseases
    hiv = make_hiv()
    diseases = [hiv]
    if add_stis:
        ng, ct, tv, bv = make_stis()
        stis = [ng, ct, tv, bv]
        diseases += stis  # Add the STIs to the list of diseases

    # Interventions and analyzers
    intvs = make_hiv_intvs()
    if add_stis:
        intvs += make_testing(ng, ct, tv, bv, scenario=scenario, poc=poc, stop=stop)
        connectors = [sti.hiv_ng(hiv, ng), sti.hiv_ct(hiv, ct), sti.hiv_tv(hiv, tv)]
    else:
        connectors = []

    if analyzers is None:
        analyzers = [sti.sw_stats(diseases=['ng', 'ct', 'tv']), ts()]

    # Actually create the sim
    sim = ss.Sim(
        dt=dt,
        rand_seed=seed,
        total_pop=total_pop,
        start=start,
        stop=stop,
        people=ppl,
        diseases=diseases,
        networks=[sexual, maternal],
        demographics=[pregnancy, death],
        interventions=intvs,
        analyzers=analyzers,
        connectors=connectors,
    )

    # Store scenario
    sim.scenario = scenario
    return sim

If your make_sim() function is computationally expensive, you can parallelize it using sc.parallelize(), e.g.

# Make the arguments
iterkwargs = []
for seed in range(100):
    for n_agents in [1e3, 2e3, 5e3, 10e3]:
        iterkwargs.append(dict(seed=seed, n_agents=n_agents))

# Make the sims
sims = sc.parallelize(make_sim, iterkwargs=iterkwargs)
