Demographics

Starsim can include detailed population dynamics through its demographics modules. These modules handle births, deaths, and pregnancy to model realistic population changes over time. By default, Starsim simulations have a fixed population size, but adding demographics allows the population to grow, shrink, and change age structure naturally.

Demographics modules are essential for modeling disease transmission over longer time periods, understanding generational effects, and capturing realistic population dynamics.

Simple usage

Let’s start by comparing two identical simulations, one with demographics enabled and one without:

import starsim as ss
import sciris as sc
sc.options(jupyter=True)

# Simulation parameters
pars = dict(diseases='sis', networks='random', verbose=0)

# Create simulations
sim1 = ss.Sim(label='No demographics', **pars)
sim2 = ss.Sim(label='With demographics', demographics=True, **pars)

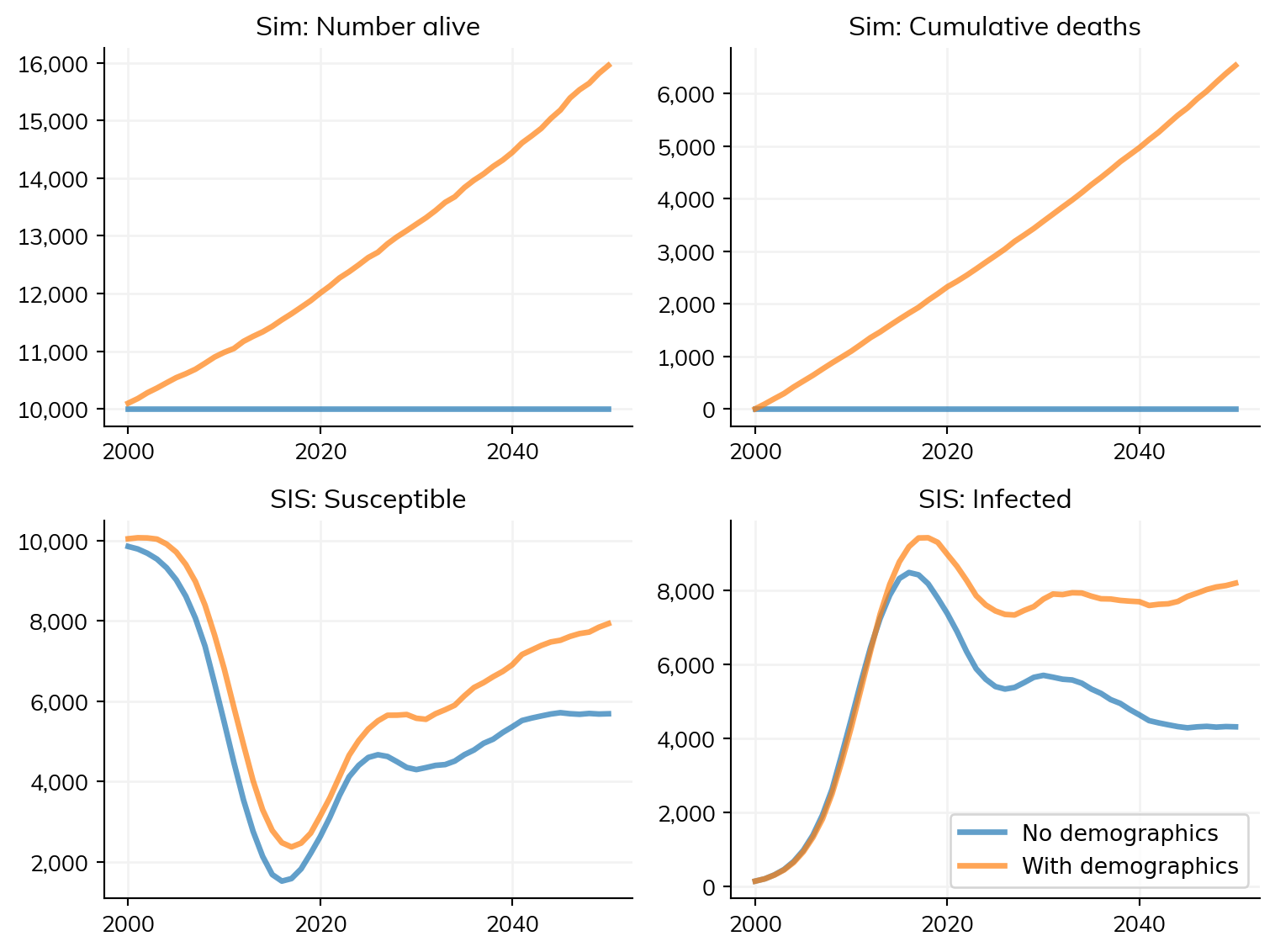

# Run both simulations and plot
msim = ss.parallel(sim1, sim2)
msim.plot(['n_alive', 'cum_deaths', 'sis_n_susceptible', 'sis_n_infected'])

Figure(768x576)

Advanced usage: Pregnancy and births

For more detailed modeling, you can use the Pregnancy module instead of simple Births. The pregnancy module models:

• Age-specific fertility rates
• Pregnancy duration and outcomes
• Maternal and neonatal mortality
• Mother-to-child transmission pathways

import numpy as np
import pandas as pd
import sciris as sc
import starsim as ss
import matplotlib.pyplot as plt

# Create age-specific birth and fertility data

birth_data = pd.DataFrame({
    'Year': [2000, 2005, 2010, 2015, 2020, 2025, 2030],
    'CBR': [40, 35, 30, 31, 32, 30, 28]  # Age-specific birth rates
})

fertility_data = pd.DataFrame({
    'Time': [2020]*7,
    'AgeGrp': [15, 20, 25, 30, 35, 40, 45],
    'ASFR': [0.05, 0.15, 0.20, 0.15, 0.10, 0.05, 0.01]  # Age-specific fertility rates
})

# Create a simple births module
births = ss.Births(birth_rate=birth_data)

# Create a pregnancy module with custom parameters
pregnancy = ss.Pregnancy(
    fertility_rate = fertility_data,
    rel_fertility = 1000, # Whether data are per person or per 1000
    dur_pregnancy = ss.years(0.75),           # 9 months pregnancy
    dur_postpartum = ss.years(0.5),           # 6 months postpartum
    p_maternal_death = ss.bernoulli(0.001),   # 0.1% maternal mortality
    p_neonatal_death = ss.bernoulli(0.02),    # 2% neonatal mortality
    min_age = 15,
    max_age = 50,
)

# Create deaths module
deaths = ss.Deaths(death_rate=ss.peryear(8))  # 8 deaths per 1000 per year

# Create simulations
n_agents = 5_000 # Number of agents
nga_pop_1995 = 106819805 #
age_data = pd.read_csv('test_data/nigeria_age.csv')
ppl = ss.People(n_agents, age_data=age_data)

pars = dict(start=1995, people=ppl, n_agents=n_agents, diseases='sis', networks='random', verbose=0)

sim1 = ss.Sim(label='Births', **pars, demographics=[births, deaths])
sim2 = ss.Sim(label='Pregnancy', **pars, demographics=[pregnancy, deaths])

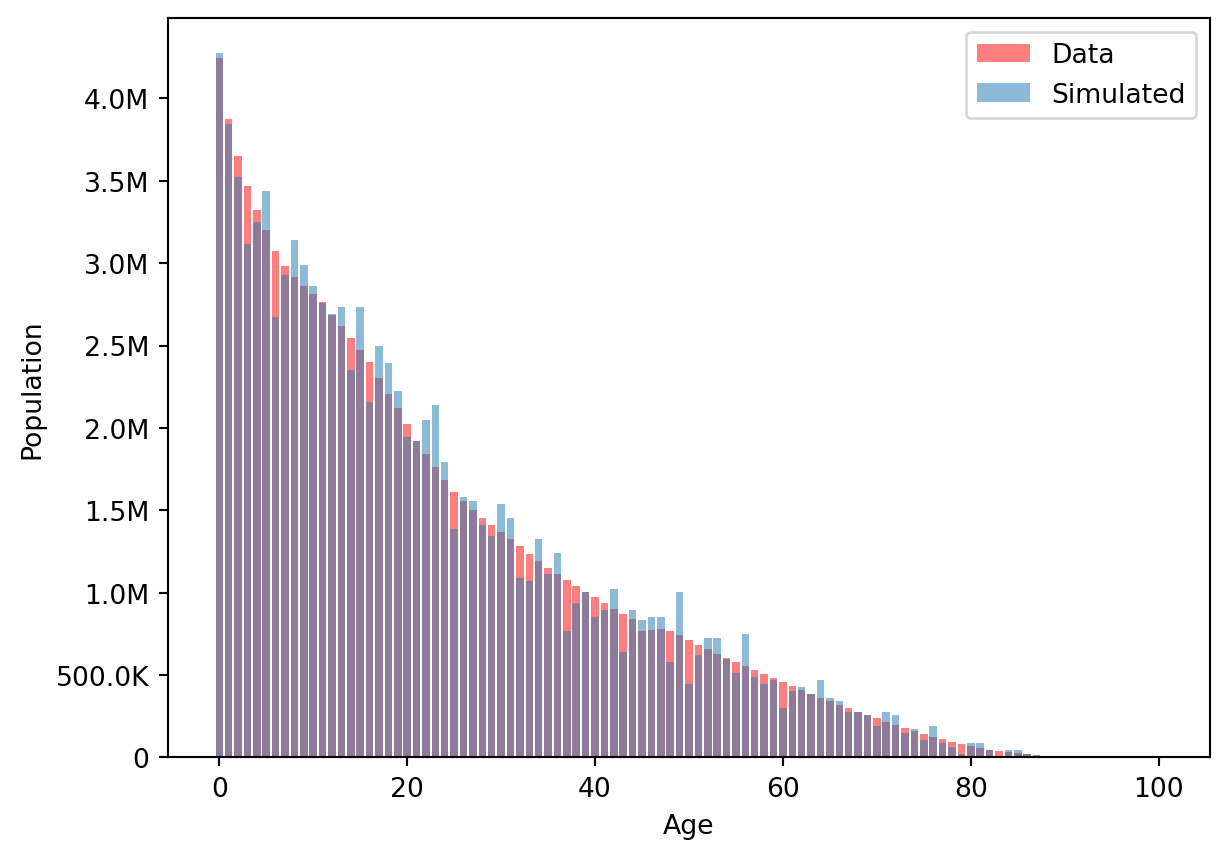

# Plot histograms of the age distributions - simulated vs data at initialization
sim1.init() # This creates the population
bins = np.arange(0, 101, 1)
init_scale = nga_pop_1995 / n_agents
counts, bins = np.histogram(sim1.people.age, bins)
plt.bar(bins, age_data.value.values * 1000, alpha=0.5, color='r', label='Data')
plt.bar(bins[:-1], counts * init_scale, alpha=0.5, label='Simulated')
plt.legend(loc='upper right')
plt.ylabel('Population')
plt.xlabel('Age')
sc.SIticks()

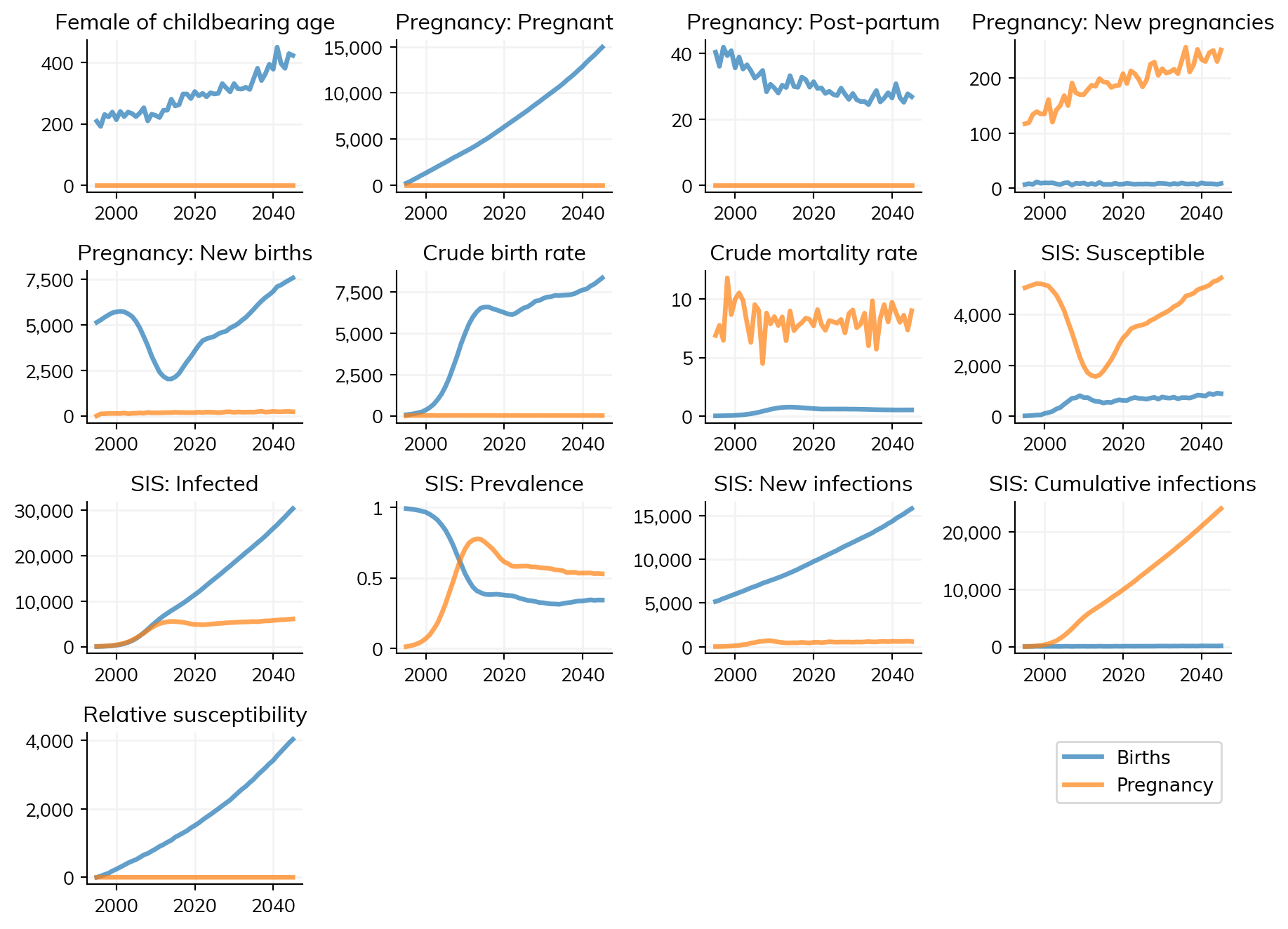

# Run nd plot simulations
msim = ss.parallel(sim1, sim2)
msim.plot()

Figure(896x672)

/home/cliffk/idm/starsim/starsim/run.py:394: RuntimeWarning:
Sim "Pregnancy" has different results keys:
Extra: pregnancy_n_postpartum, pregnancy_pregnancies, pregnancy_n_fecund, pregnancy_cbr, pregnancy_n_pregnant, pregnancy_births
Missing: births_cumulative, births_new, births_cbr
Results may not plot correctly (i.e. axes titles may not be correct for all sims)
  ss.warn(warnmsg)

Summary

• Demographics modules enable realistic population dynamics in Starsim:
  • Births: Simple constant or time-varying birth rates
  • Deaths: Background mortality separate from disease deaths

  • Pregnancy: Detailed pregnancy modeling with maternal/neonatal outcomes
• Key considerations:
  • Use demographics=True for default birth/death rates
  • Use birth_rate and death_rate for custom constant rates
  • Use ss.Pregnancy() for age-specific fertility, pregnancy modeling, and mother-to-child transmission
  • Demographics automatically enables aging; if you want to use aging without demographics, set use_aging=True
